Active Pressure Washer Wall Mount

The Active Hose Reel & Wall Mount is a premium-grade storage solution designed to complement your pressure washing setup. Built for performance and durability, this heavy-duty hose reel keeps your workspace clean and organised while protecting your hose from wear, kinks, and damage.

Engineered for use with Active pressure washers and accessories, the reel is compatible with up to 30 metres of 3/8 inch and 45 metres of 5/16 inch of high-pressure hose. The smooth rewind function, integrated handle, and wall-mount bracket make setup easy while allowing quick deployment and tidy storage between uses. Crafted from corrosion-resistant materials, it’s built to stand up to frequent use and harsh outdoor conditions.

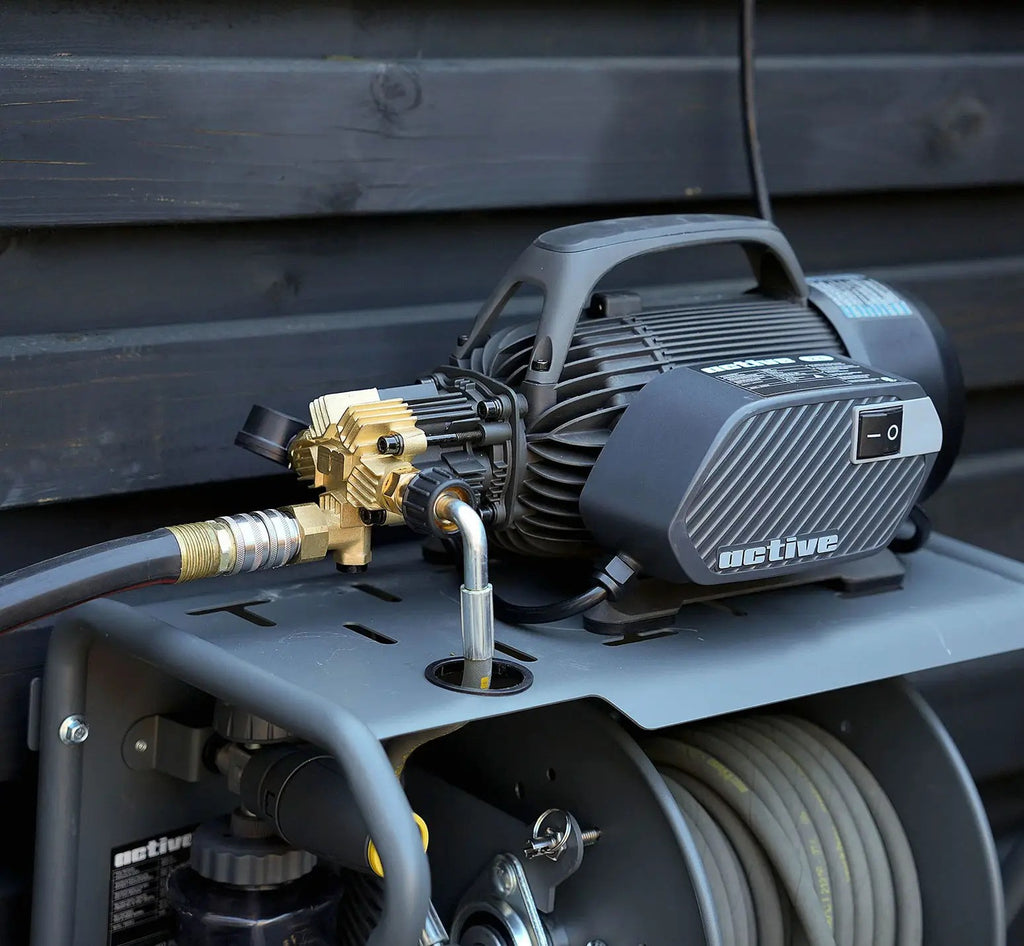

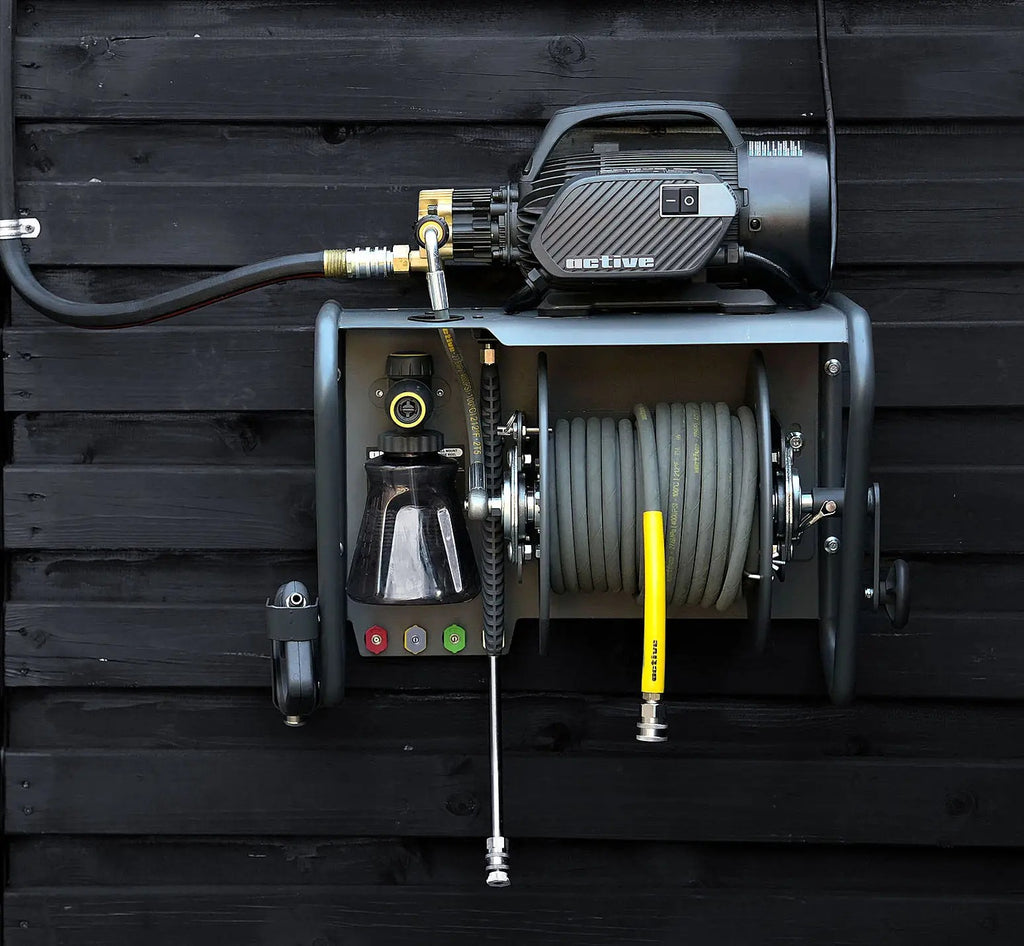

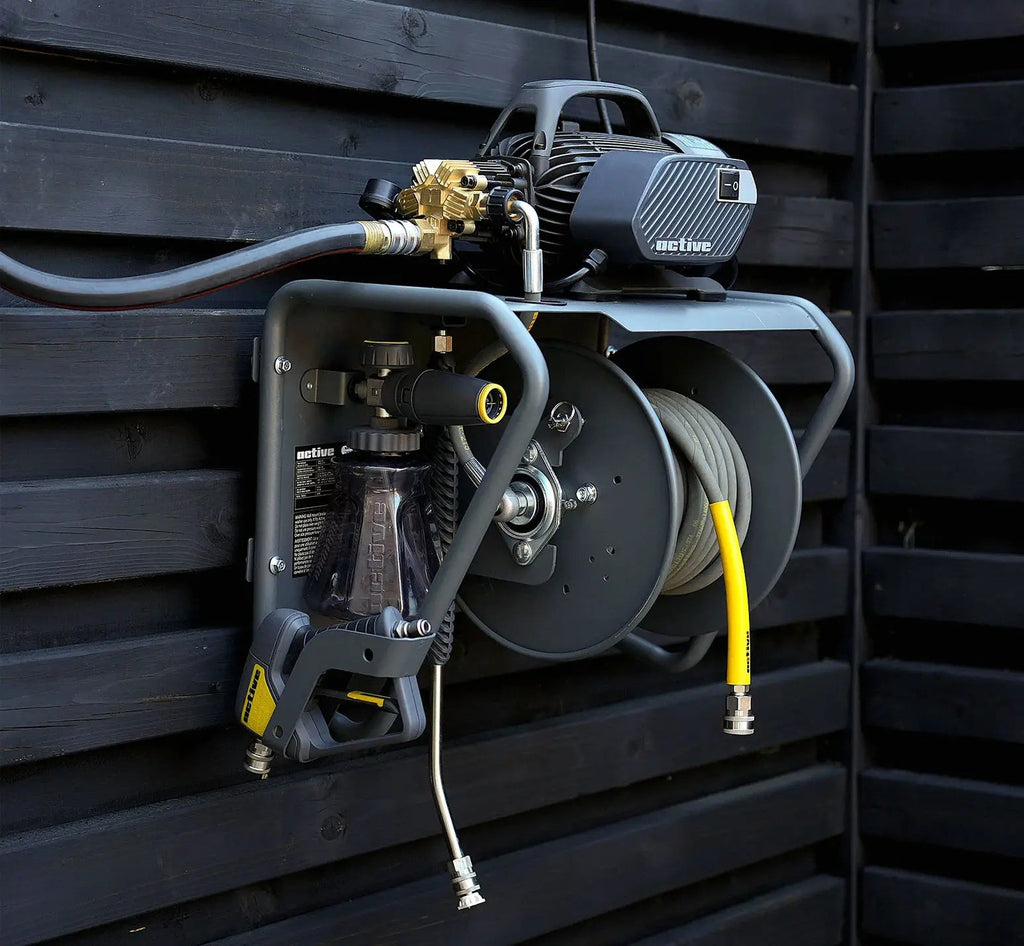

Dedicated slots for pressure washer gun, foam cannon, lance and 4 nozzles. A 16 inch backing plate for safe mounting on the wall and a 5/16 inch diameter jumper hose with an M22-14mm connector for install with the pressure washer.

The solution aims to be an integral accessory to the car wash experience in your garage, which ties in the Active pressure washer range to the active accessory bundle and completes the set of products for an integrated wash experience.

Features:

• Wall-Mountable: Securely installs to most vertical surfaces for stable and accessible hose storage.
• Smooth Operation: Features a fluid rewind system with comfortable hand crank for easy winding and unwinding.
• Durable Construction: Made with corrosion-resistant materials to withstand outdoor use and frequent pressure washing.
• Universal Fit: Designed to accommodate up to 30 metres of 3/8 inch and 45 metres of 5/16 inch of high-pressure hose, compatible with Active Pressure Washers and other systems.
• Tangle-Free Management: Keeps your hose off the ground, preventing twists, kinks, and unnecessary damage.
• Space-Saving Design: Compact and functional, ideal for tidy storage in tight workspaces or garages.

Complete your pressure washing setup with the Active Hose Reel & Wall Mount - a smart, durable upgrade that adds professionalism and order to your detailing environment.

Technical Specs:

Hose Reel:

• Inlet fitting: 3/8 inch QC female coupler.
• Outlet fitting: M22 x 14mm.
• Extension hose pre-installed.
• Reel rotation lock: release lock pin before turning the reel.
• Hand crank: customer need install hand crank and lock by pin.
• Hose clamp: customer needs to make adjustment to secure hose.
• Stainless steel (304) reel valve.

Metal Frame:

• Hose reel is pre-installed on frame.
• Customer installation is required for wall mount mode.
• Customer installation required for gun holder and fasten by screw.
• Customer adjustment is required for hose clip.

Hardware Supplied:

• 4pcs 6 x 30mm screws to fasten mounting plate on the wall.
• 4pcs M8 x 20mm bolts to secure wall mount to mounting plate.
• 2pcs M5 x 14mm bolt to secure gun holder on frame.

Accessories Supplied:

• Hand crank with lock pin.
• Mounting plate.
• Gun holder.
• Hardware kit.
• Jumper / lead hose to pressure washer (M22 x 14mm - female).

Measurements:

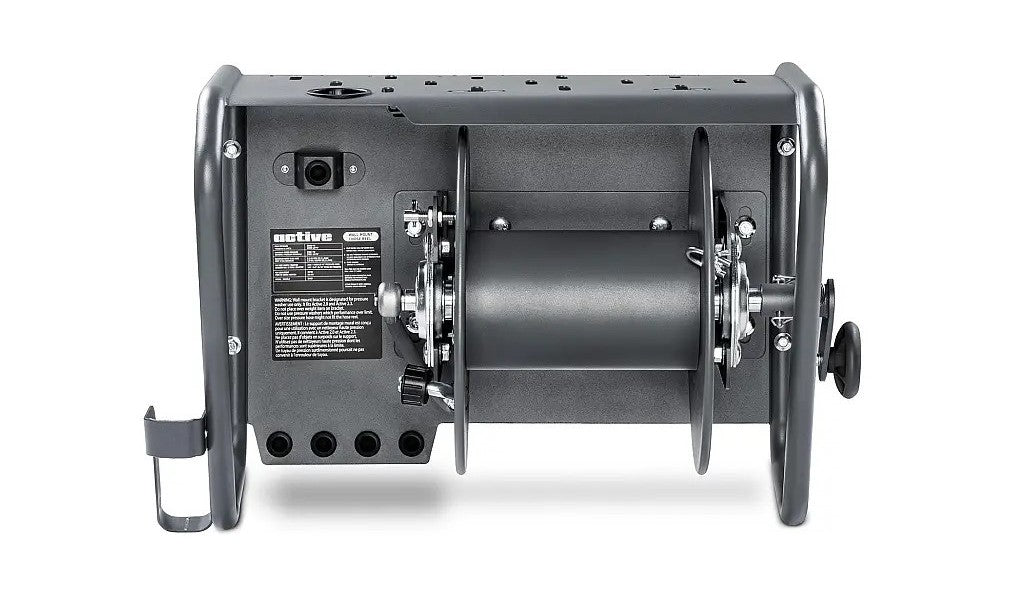

Hose Reel:

• Outer disc diameter: 300mm.
• Inner barrel diameter: 120mm.
• Reel width: 200mm.
• Max. accommodate hose: 5/16 inch pressure hose, 30 metres (100 foot).

Metal Cage:

• Width x depth x height: 525 x 350 x 405mm.
• Mounting plate bolt holes layout: 16 inches x 5.6 inches x 8.0mm.
• Maximum loading capacity: 40kg.
